Solar Shadow Analysis: Can I Install Panels Near Coconut Trees or Water Tanks?

"Sir, I have a big overhead water tank. Can we put panels next to it?" "Sir, my neighbor has a huge coconut tree. Will it affect generation?"

In Cuddalore, open, empty roofs are rare. We almost always have to deal with obstacles—staircase rooms, water tanks, dish antennas, or the neighbor's 3-story building. Understanding Shadow is the difference between a system that generates 15 units/day and one that generates 5 units/day.

Here is the deep science of why shadow is dangerous—and how we fix it in 2026 using advanced Half-Cut Cell technology.

1. The "Garden Hose" Effect (Physics of Shadow)

To understand solar shadows, imagine a long garden hose (water pipe). If water is flowing through the hose, and you pinch it tight at just one point, what happens?

• Does the water flow locally at that point stop? No.
• The water flow in the ENTIRE hose stops.

Solar panels are connected in a Series String, exactly like that hose.

• The Setup: You have 10 panels connected in a line (String). Total voltage = 400V.
• The Problem: A coconut tree casts a shadow on just Panel #1.
• The Result: Panel #1 acts like a block. Because they are in series, electrical current cannot pass through it. ALL 10 PANELS STOP WORKING.

This is why a small shadow is meaningful. It doesn't just reduce power by 10%; it can bring the whole string to zero.

2. Bypass Diodes: The Old Solution

Standard panels have "Bypass Diodes" inside the junction box on the back.

• How it works: When a panel is shaded, the diode activates. It acts like a "Detour Road". It diverts the current around the shaded panel so that the other 9 panels can keep working.
• The Cost: When the diode activates, you lose the power of that entire module (300 Watts lost).
• The Risk: Diodes are not meant to work 24/7. If a shadow falls on the panel every single day for 5 years, the diode will overheat and burn out. Once the diode fails, the panel becomes an open circuit.

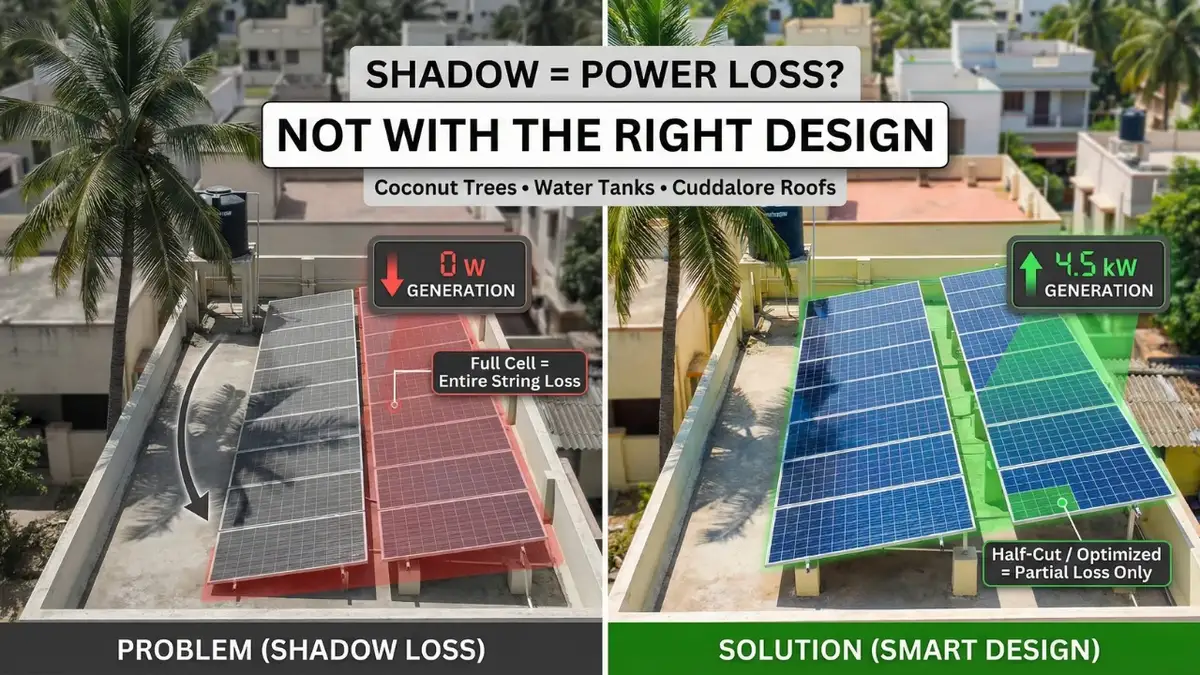

3. Half-Cut Cell Technology: The 2026 Standard

In 2026, we almost exclusively use Half-Cut Mono PERC panels (like Waaree or Adani TopCon). These panels are physically cut in half by a laser during manufacturing.

• Top Half: Functions as Circuit A (Independent).
• Bottom Half: Functions as Circuit B (Independent).

The Benefit: Imagine a parapet wall casts a shadow on the bottom half of the panel in the morning between 7 AM and 9 AM.

1. Old Full-Cell Panel: 100% Power Loss. The whole system waits until 9 AM to start.
2. Half-Cut Panel: The bottom half stops, but the Top Half keeps working at 100%. Instead of generating 0 Watts, you generate 270 Watts. For Cuddalore homes with cramped roofs and high parapet walls, Half-Cut panels are non-negotiable.

Get a Shadow-Free Design Quote

4. Hotspots: The Safety Hazard

What happens if a small, sharp shadow stays on a cell for years?

• Examples: A flexible wire lying on the glass, a bird dropping that isn't cleaned, or a TV dish shadow.
• The Reaction: The shaded cell acts like a resistor (blockage). It forces current through itself, generating massive heat.
• Hotspot: The cell can reach temperatures of 150°C+.
• The Damage: The glass cracks. The plastic backsheet melts. In extreme cases, it starts a fire.

Surya's Design Rule: We strictly design systems so that NO permanent shadow falls on the panels between 9 AM and 3 PM (Peak Sun Hours). Early morning or late evening shadow is acceptable, but peak shadow is dangerous.

Worried About Shadows on Your Roof?

Get a free shadow analysis report using professional tools. We'll design your system to maximize generation despite obstacles.

Get Shadow Report

5. The "Safe Distance" Formula

We don't guess. We calculate using the Sun Path. Cuddalore is at Latitude 11.7°N.

• December (Winter Solstice): The sun is low in the South. Shadows are Longest. (A 10ft tank casts a ~21ft shadow).
• June (Summer Solstice): The sun is overhead. Shadows are Shortest.

The 2X Rule of Thumb: If you have an obstacle (Tank/Room) of Height H, the solar panels start at a distance of 2 x H (South).

• Example: A 6ft tall water tank is on the South side.
• Safe Distance = Place panels 12ft away to stay shadow-free in December.

6. The Coconut Tree Dilemma

This is Cuddalore's unique problem. A neighbor's tree is 40ft tall. Solutions:

1. Trimming: Can you trim the fronds? (Remember, they grow back in 4 months. It's a maintenance cost).
2. Elevated Structure: We can raise the structure to 8 Feet or 10 Feet to rise above the shadow of a small tree or wall. This is expensive (add ₹25k) but often necessary.
3. Modern Power Optimizers: For extreme cases, we use Micro-Inverters (Enphase).
   • They allow every panel to work independently.
   • Even if Panel A is 90% shaded by a tree, Panel B works at 100%.
   • Note: This increases cost by ₹1 Lakh, but it makes an "Impossible" roof possible.

Don't let a shadow steal your ROI. We use simulation software to model your roof 365 days a year before we install.
